NeuroScopia

NeuroScopia is a compact microscopics imaging system with wide magnification options, motorized precision stage, and embedded processing.

Product Images

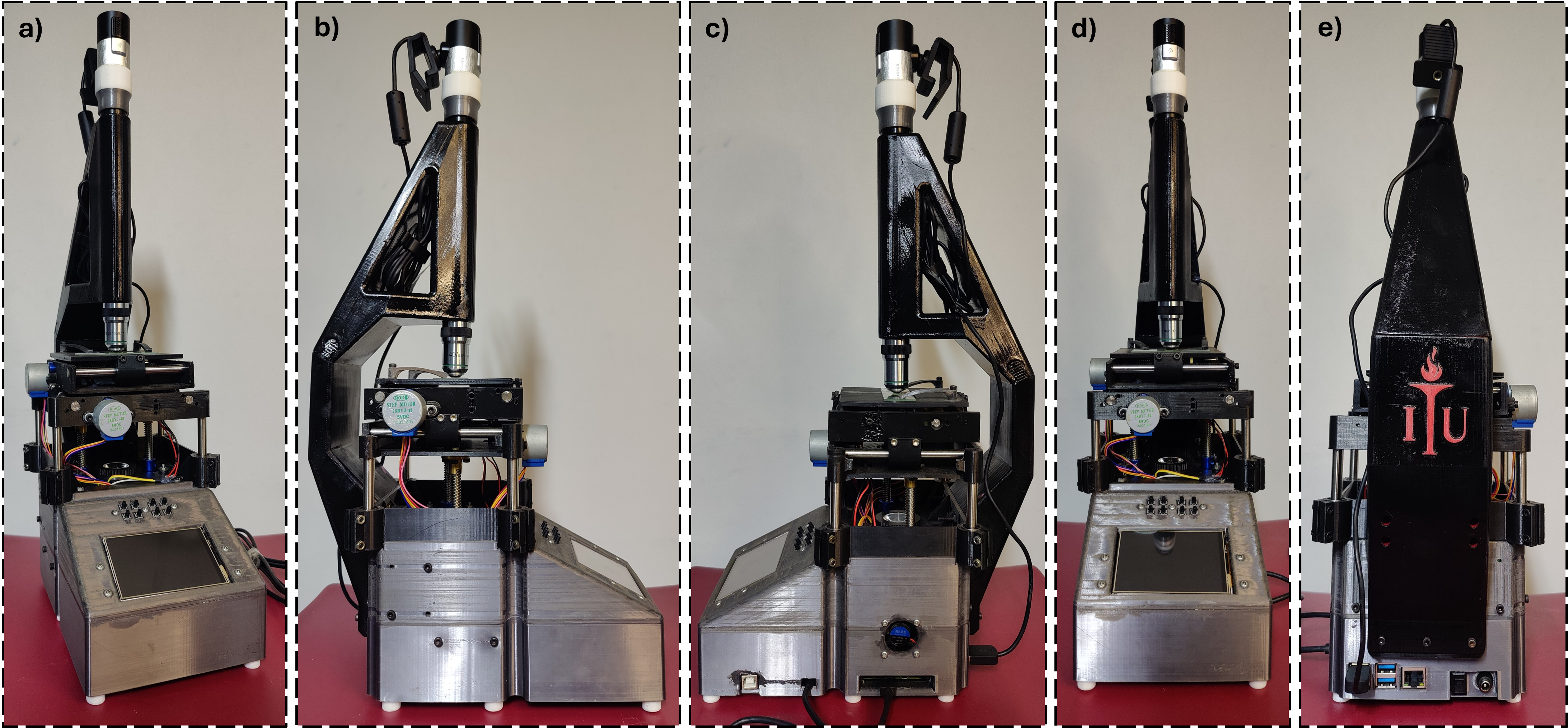

NeuroScopia Main View

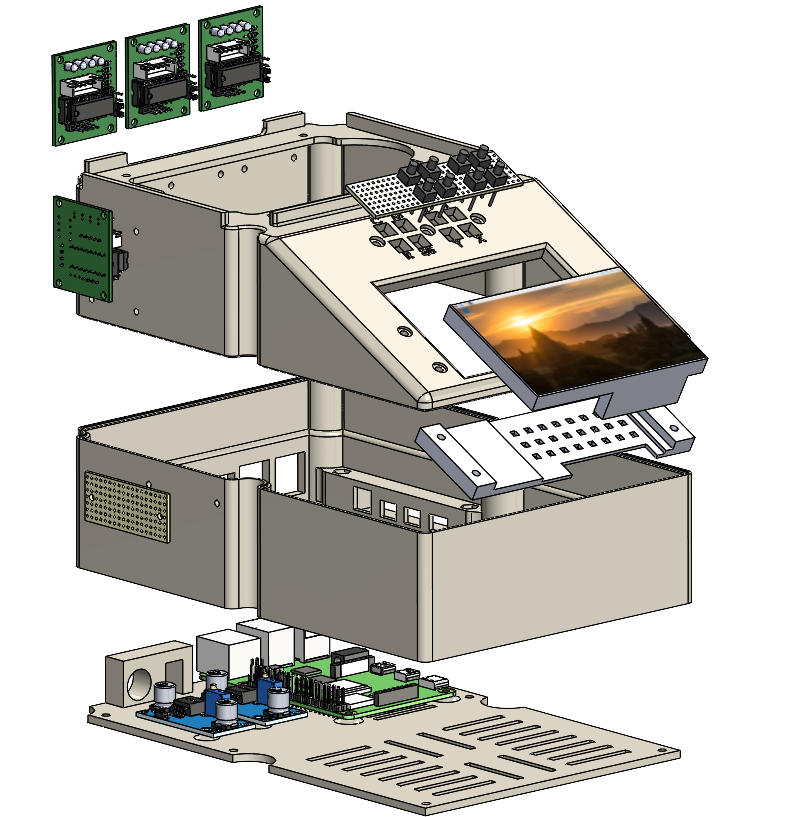

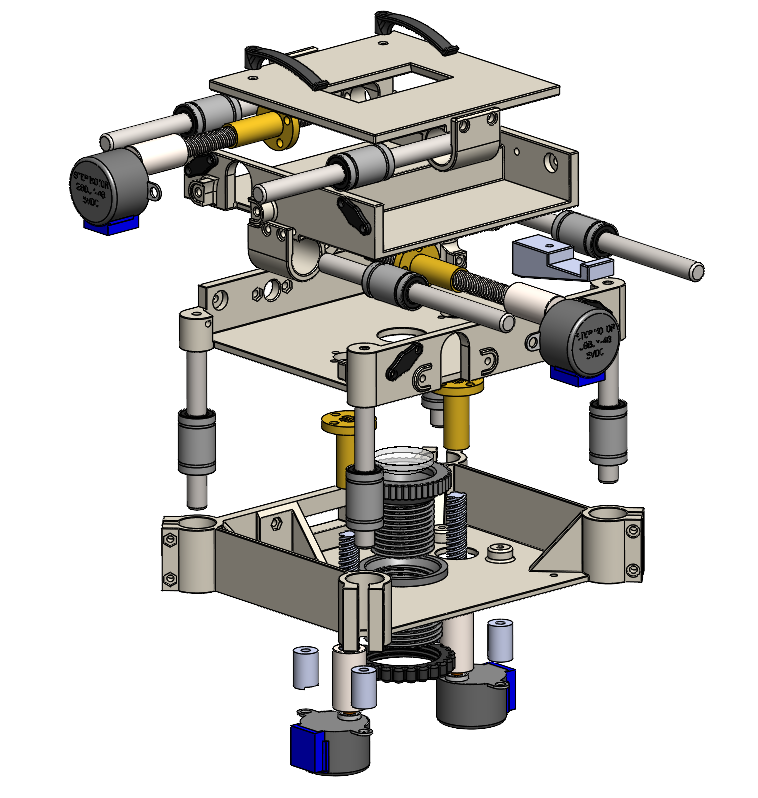

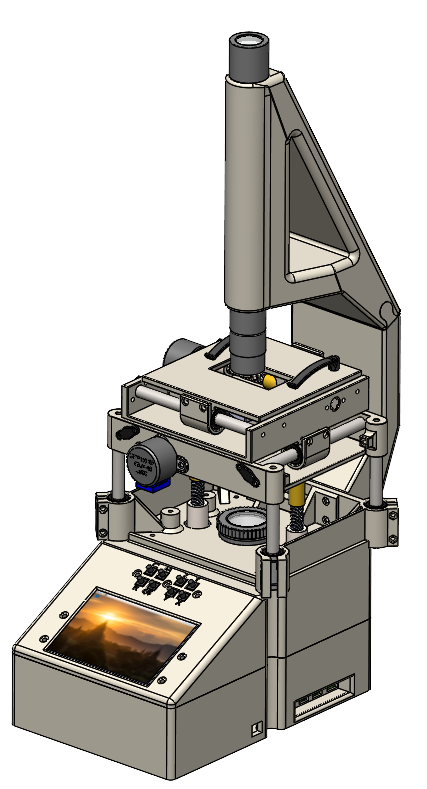

NeuroScopia Side View NeuroScopia Display NeuroScopia Stage

Specifications

Source LED
Objective Lens 4x, 10x, 40x, 60x
Stage 3 Axis Motorized Control
On-board Processing unit Raspberry Pi 4B+
Detector CMOS: RGB Camera
Display 7" LCD
Nosepiece Fixed, Monocular
Weight 2.7kg
Dimensions L × W × H
11" × 7.5" × 18"
Material PLA
Cost $580

Key Advantages

1
Cost Effective

$580

2
Camera-Based
Imaging

3
Automatic Slide-
Scanning

User-Friendly
Region of
Interest (ROI)
Scanning

4
Touch-Based UI
  • 7-in Touch LCD
  • Minimalistic User interface
5
Low Power
  • Operable with Single Power Bank
  • Low-voltage Electronics
6
Precise Movement
  • 3-Axis Movement
  • 4 µm Precision
